Porta

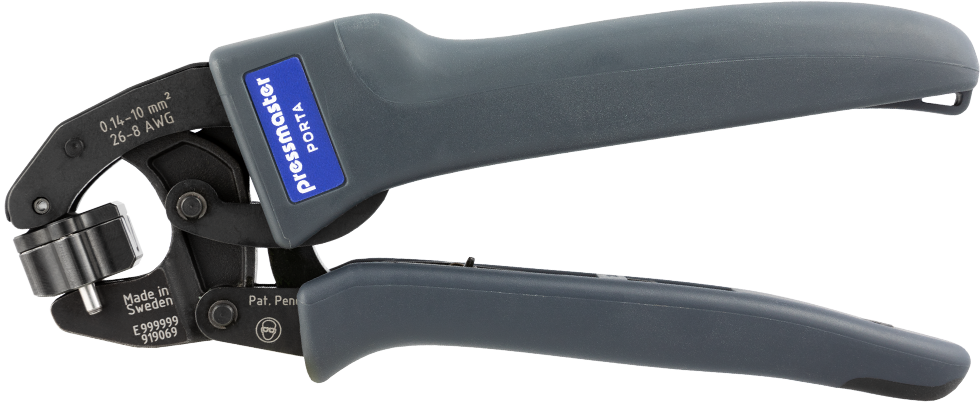

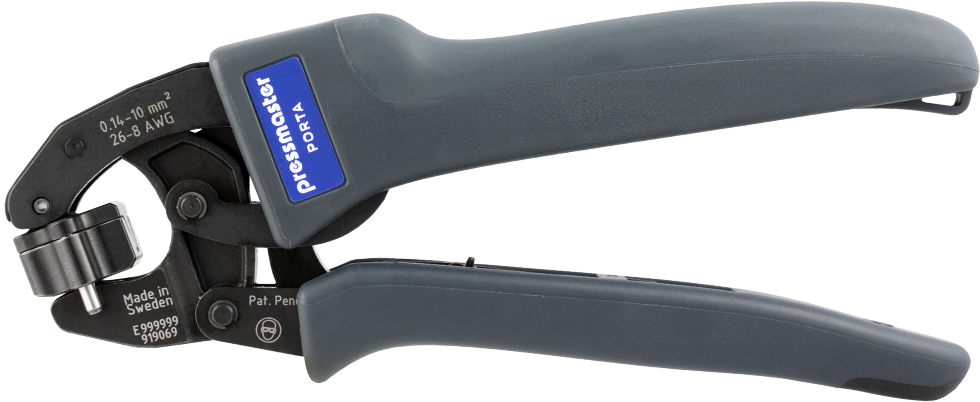

Porta, a unique tool for crimping wire ferrules up to 18 mm long, in one stroke and without adjustment. Lightweight and compact; ferrules are inserted into the front of the tool enabling good accessibility into confined spaces. The tool is self-adjusting to produce a trapezoid shaped crimp profile on wire ferrules 0.14–10.0 mm²/AWG 26–8 (produced to DIN 46228-parts 1 and 4 or UL 486F).

• Long crimp length up to 18 mm
• Trapezoid shaped crimp profile
• Compact design for easy access into confined spaces
• Ergonomic handles and low handle force for comfortable crimping
• Lightweight and well balanced in the hand
• Small handle opening angle
• Ratchet control (with emergency release) to ensure completion of crimp cy-cle
• Non-slip grip pad for applying pressure against a surface
• Hole in handle allows attachment of safety strap
• Each tool has a unique serial number for traceability
