VIDAR 4

VIDAR 4

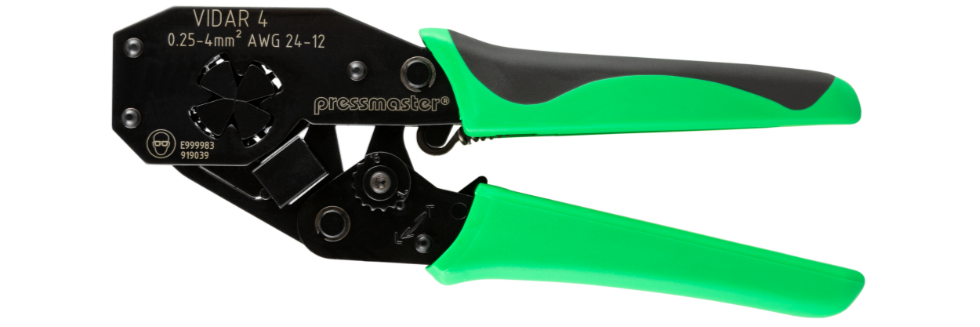

The VIDAR 4 is the original, and still thebest crimping tool with self-adjusting dies for producing a square crimp profile on wire fer­ rules 0.25-4.0 mm2/AWG 24-12 (produced to DIN 46228-parts land 4 orUL 486F).

The standout feature of the VIDAR tools is their ability to produce a very clean, square crimp, well compressed and with very little distortion along the length of the crimped ferrule.

  • Proven design
  • Adjustment facility for tool calibration
  • Comfort handles with a non-slip insert in the fixed handle
  • Well balanced so that the tool does not slip out of the hand
  • Full cycle crimp mechanism to ensure consistent, reliable crimps
  • Ratchet release mechanism to clear miscrimps and obstructions
  • Each tool has a unique serial number for traceability
3

DATI TECNICI

193 mm/7.6"
20 mm/0.79"
67 mm/2.64"
401 gr/0.88 lb
0.25-4 mm2 / AWG 24-AWG 12
50.000
